Home / All / Custom Carabiners & Connectors / Steel Carabiner / Automatic Locking 23kN Steel Oval Carabiner ? Secure Connector for Work at Height Applications
Automatic Locking 23kN Steel Oval Carabiner ? Secure Connector for Work at Height Applications
| Share | |
|---|---|
| Categories | Steel Carabiner |
| Brand | KinSafety PPE Wholesale Manufacturer |
| Model | JS-1012TN3-M |
| Material | Cold-Formed Steel |
| Material Treatment | Heat Treated |
| Minimum Breaking Load | 23kN |
| Shape | Oval |
| Locking Mechanism | Automatic Locking |
| Dimensions | 108 ? 60mm |
| Gate Opening | 19mm |
| Net Weight | 195g |
| Meets or Exceeds | EN 362:2004 (per supplied product information) |
| Color | Gold Tone as Shown |
| Download |  |
Detail Information

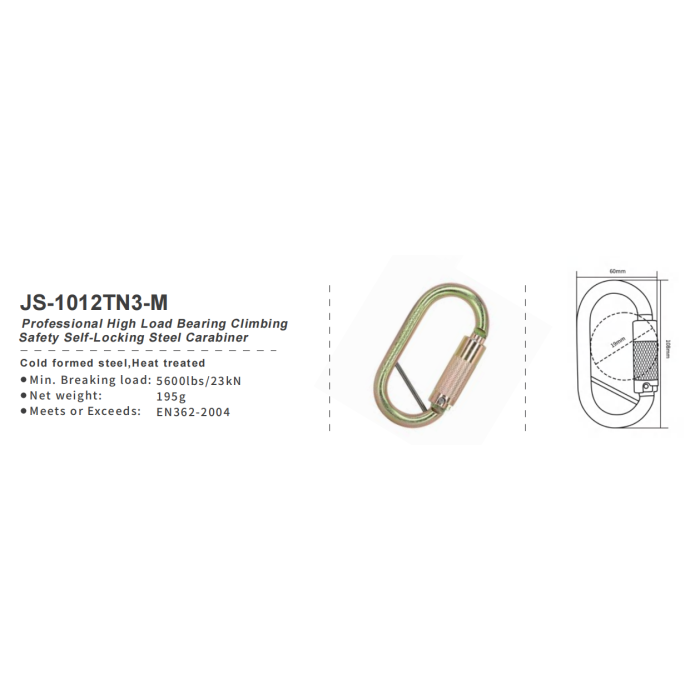

JS-1012TN3-M STEEL CONNECTOR
23kN automatic locking performance in a compact oval format
JS-1012TN3-M is a cold-formed, heat-treated steel oval carabiner designed for professional work-at-height connections, rope-access equipment, industrial fall-protection systems, climbing safety, and rescue-equipment integration.
The connector measures 108 × 60mm, provides a 19mm gate opening, and weighs 195g. Its automatic-locking mechanism supports a repeatable closure workflow for B2B buyers evaluating dimensional fit, load specification, and system compatibility.
CONFIRMED PRODUCT DATA
JS-1012TN3-M specifications
Use these values for product comparison and system evaluation. Minimum breaking load is not a working load limit.
| Product type | Steel Oval Carabiner |
|---|---|
| Model | JS-1012TN3-M |
| Material | Cold-Formed Steel |
| Material treatment | Heat Treated |
| Shape | Oval |
| Locking mechanism | Automatic Locking |
| Minimum breaking load | 23kN |
| Overall dimensions | 108 × 60mm |
| Gate opening | 19mm |
| Net weight | 195g |
| Meets or Exceeds | EN 362:2004, according to supplied product information |
APPLICATION-LED SELECTION
Where this steel oval carabiner fits
Final suitability depends on the complete system, loading direction, compatible equipment, user instructions, and applicable market requirements.
WORK AT HEIGHT
Professional connection systems
Evaluate the 23kN steel connector for compatible harness, lanyard, anchor-interface, and industrial safety assemblies.

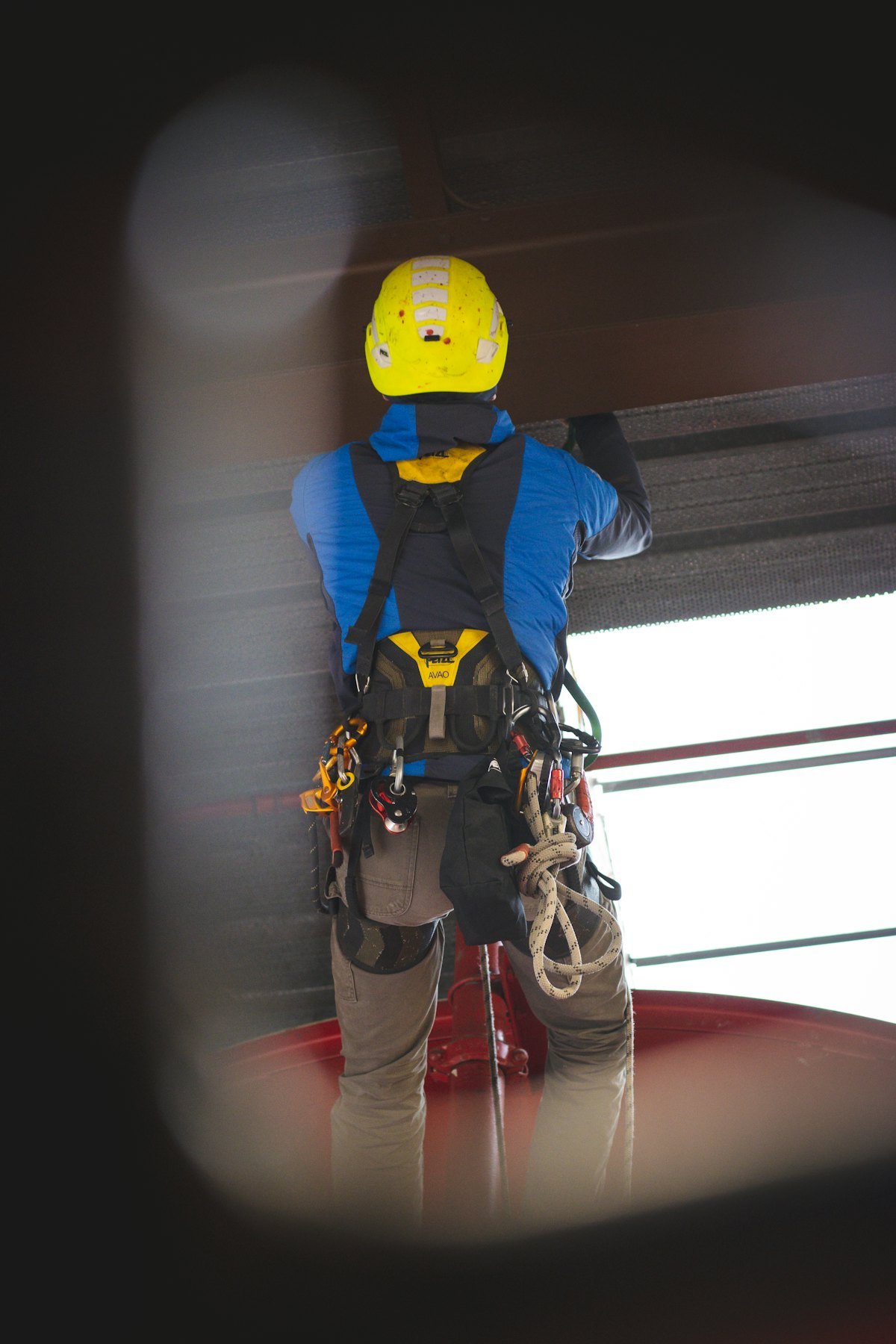

ROPE ACCESS
Equipment and rescue integration
Use the 108 × 60mm body and 19mm opening as practical checkpoints when reviewing adjacent devices and connection points.
B2B EVALUATION
Built for specification review
Model identification, material, dimensions, weight, gate opening, locking type, and minimum breaking load are clearly defined for sampling and procurement.
PROFESSIONAL PURCHASE GUIDE
Four checkpoints for technical buyers
Material & durability
The confirmed construction is cold-formed steel with heat treatment. Buyers should align the exact steel grade, heat-treatment records, surface specification, and inspection criteria with the approved sample and purchase specification.
Outdoor environmental adaptability
For outdoor, coastal, high-humidity, chemical, or temperature-extreme locations, define the operating environment during quotation. Coating type and environmental performance require project-specific confirmation and supporting evidence.
Load performance & safety factor
The supplied minimum breaking load is 23kN. It must not be presented as a working load limit, proof load, or recommended operating load. Any safety factor must follow the governing standard and approved system calculation.
Structure & detail finishing
The oval profile, 19mm opening, automatic-locking sleeve, 195g weight, and 108 × 60mm envelope provide measurable checkpoints for fit review, gate-operation checks, markings, and incoming inspection.
QUALITY REVIEW
Documents to align before production
- Exact steel grade and material documentation
- Heat-treatment and dimensional inspection records
- Automatic-lock operating instructions
- Breaking-load test evidence and applicable loading direction
- EN 362:2004 conformity documentation and connector classification
RFQ CHECKLIST
Information that helps us quote accurately
- Application and destination market
- Required quantity and delivery schedule
- Finish, marking, logo, and packaging requirements
- Test, documentation, and traceability expectations
- Compatible equipment or reference drawing
BUYER QUESTIONS
Automatic locking steel carabiner FAQ
What is the minimum breaking load?
The supplied minimum breaking load is 23kN. This is not a working load limit and should not be converted into one without an approved rule.
What are the product dimensions?
The body measures 108 × 60mm, the gate opening is 19mm, and the stated net weight is 195g.
Does the gate lock automatically?
Yes. The supplied information identifies an automatic-locking mechanism. Confirm the exact opening sequence from the approved operating instructions.
Is the connector certified to EN 362:2004?
The supplied product information states that it meets or exceeds EN 362:2004. Review the declaration, test report, and connector classification before making a certification claim.
Can the finish, markings, and packaging be customized?
These requirements can be reviewed during quotation and sampling. Any change that affects material, geometry, heat treatment, or locking components requires technical approval.
What should I provide for a quotation?
Share the application, target market, quantity, required finish, marking files, packaging, documentation checklist, compatible equipment, and delivery expectations.
READY FOR TECHNICAL REVIEW?
Discuss JS-1012TN3-M for your safety-equipment program
Send the intended application and specification checklist so material, finish, marking, documentation, packaging, and sampling requirements can be aligned before production.
